best automatic wire stripping machine

⁦best automatic wire stripping machine⁩ – תמונה ⁦3⁩

⁦best automatic wire stripping machine⁩ – תמונה ⁦4⁩

⁦best automatic wire stripping machine⁩ – תמונה ⁦5⁩

⁦best automatic wire stripping machine⁩ – תמונה ⁦6⁩

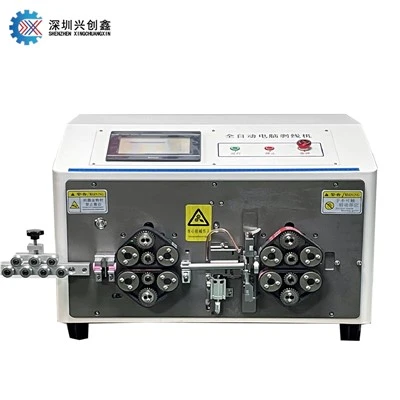

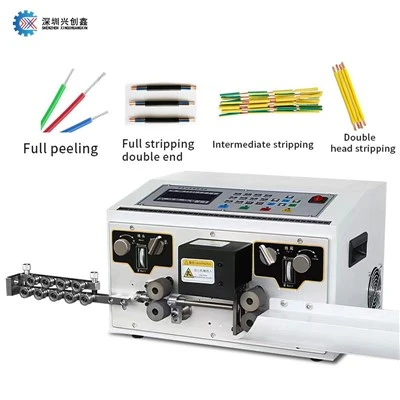

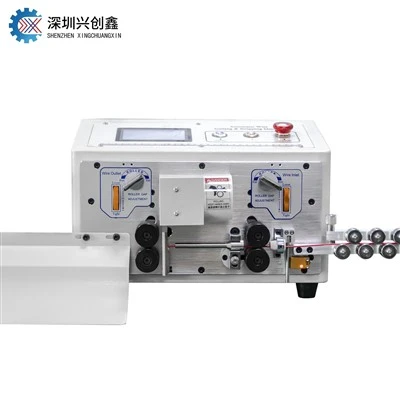

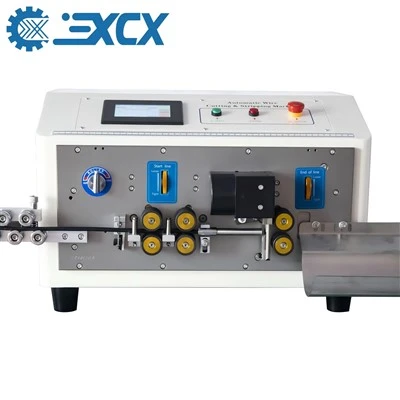

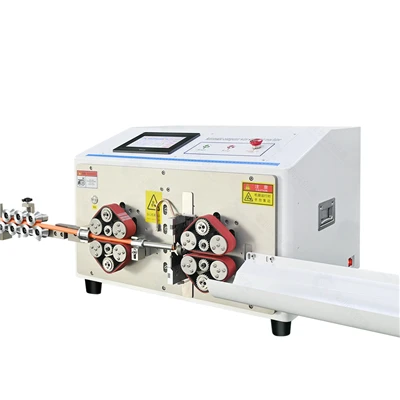

High Quality XCX-508E Wire Stripping Machine Automatic Wire Stripper Cutting Machine · High precision and productivity solutions for wire cable cutting and stripping. · Easy to operate program and low maintenance. · Safety protection. · Optional external device connection possibility: Wire feeding machine, and wire take-out device

מפרט טכני

Model	XCX-508E
Wire material	PVC, fiberglass wire…
Conductor cross-section	0.1 – 6.0 mm²(32 – 8 AWG); BV wire < 4mm²
Cutting length	1 – 99,999 mm
Cutting length tolerance	0.002 * L
Stripping Length	Side I: 0-35mm Side II: 0 – 15 mm
Maximum guide tube diameter	8 – 10 mm
Productivity	1800 – 4800 pcs./h
Noise level	< 70 dB(A)
Power supply	110, 220 V (50 – 60 Hz)
Power	300 W
Gross Weight	34 kg
Carton dimension	537 * 507 * 400 mm

קטלוג
